Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | S-PT1-2PE-24DC |
| Approvals | UL Listed, cUL Listed, cULus Listed, UL Listed, EAC |
| Current, Surge | 20 kA |
| Dimensions | 33mm L x 33mm W x 120mm H |
| For Use With | Data/Comm |
| IP Rating | IP40 |
| Mounting Type | Inline |
| Product Header | Screw-On Module Surge Protector |
| Supply Voltage | 24 VDC |
| Termination | Screw |
| Type | Network |
| UPC Code | 4017918148355 |
| Voltage, Operating | 28 VDC |
| Wire Size | 26-16 AWG |
Overview

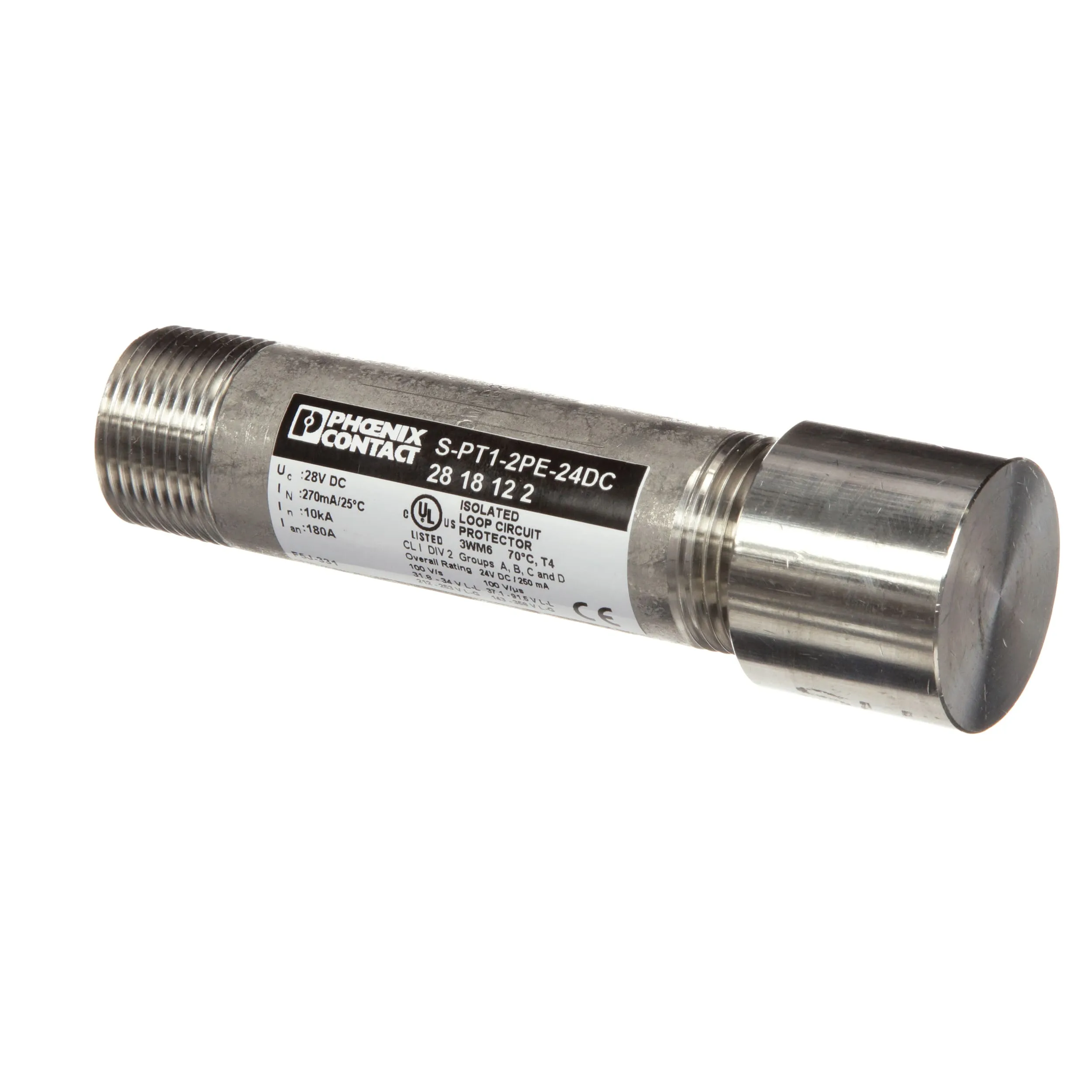

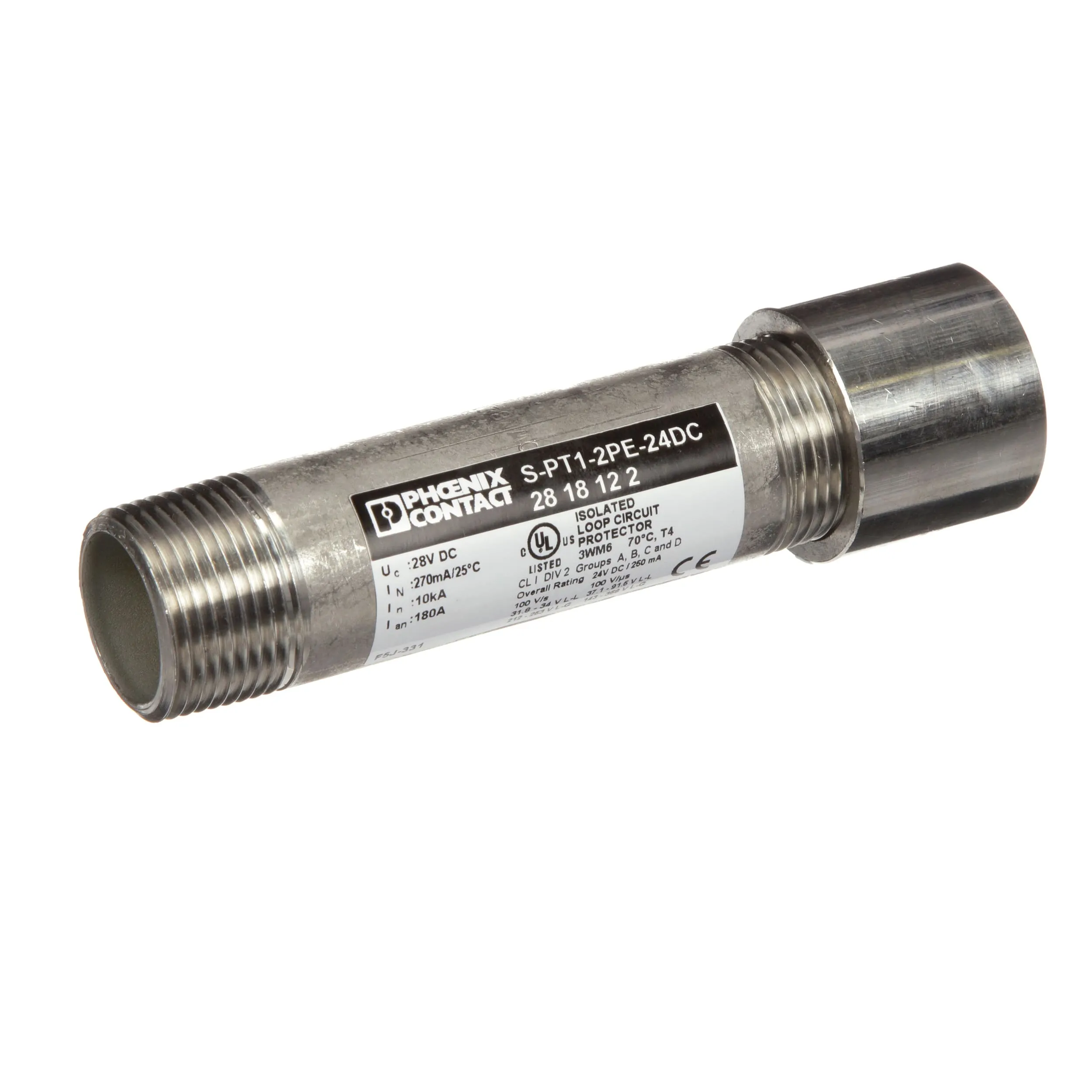

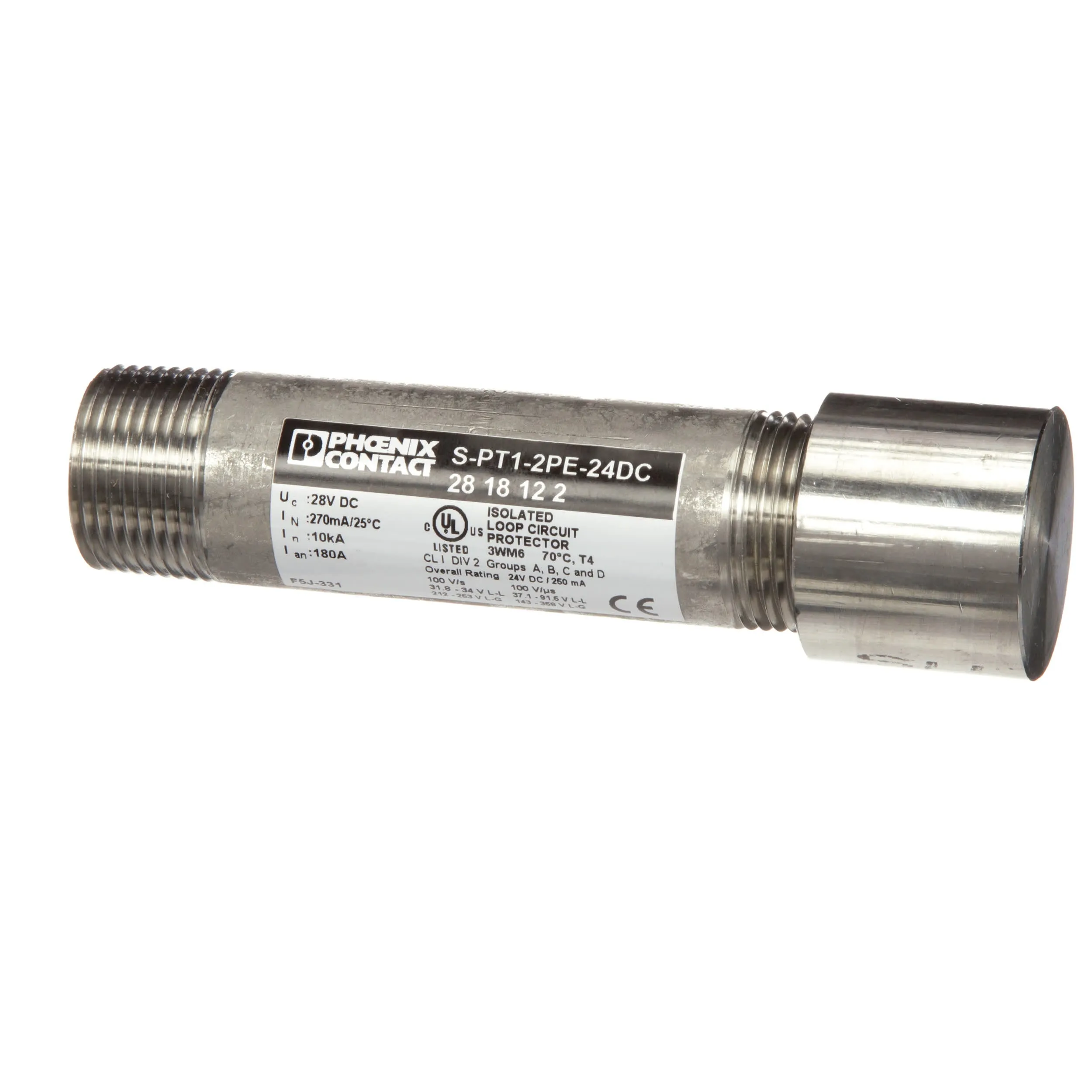

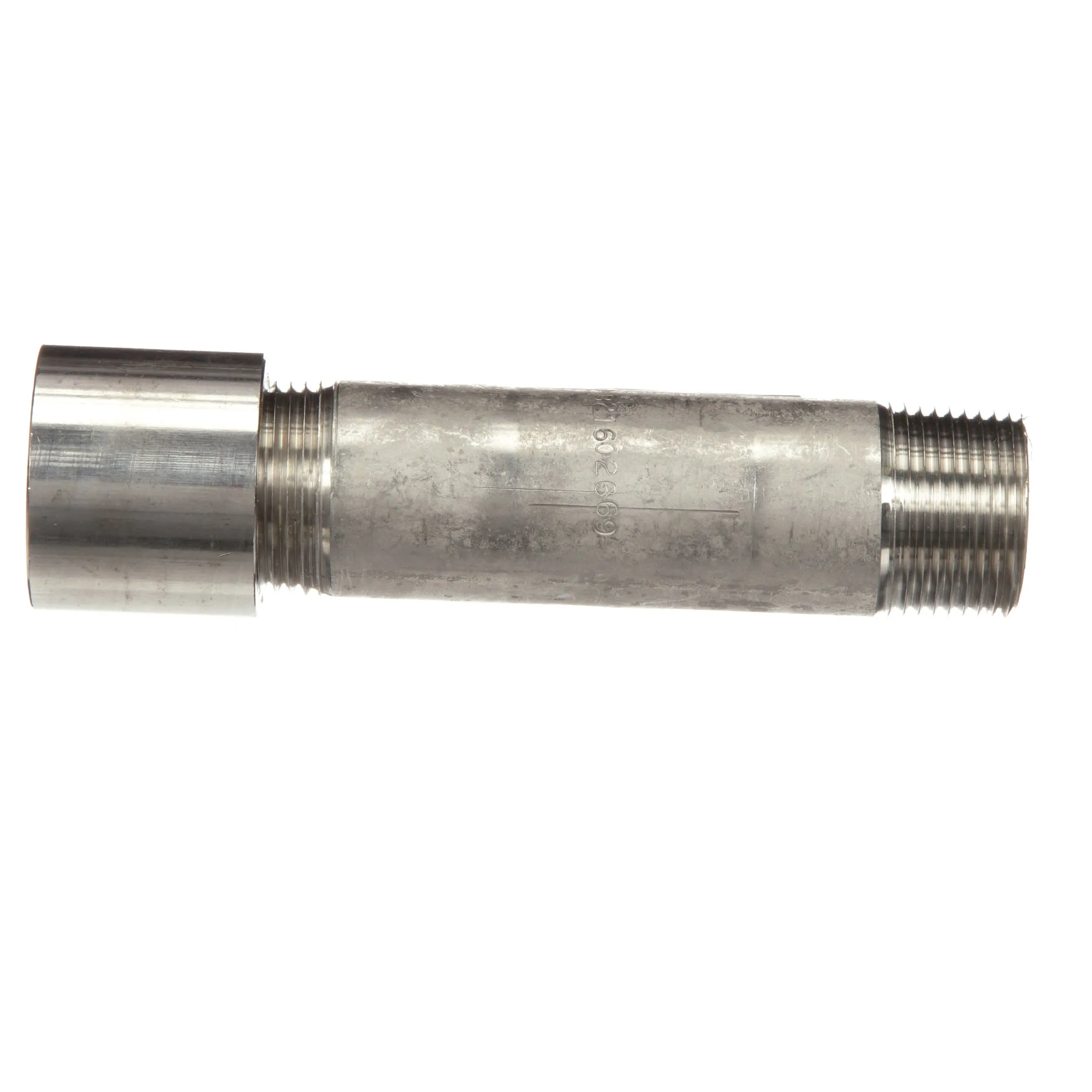

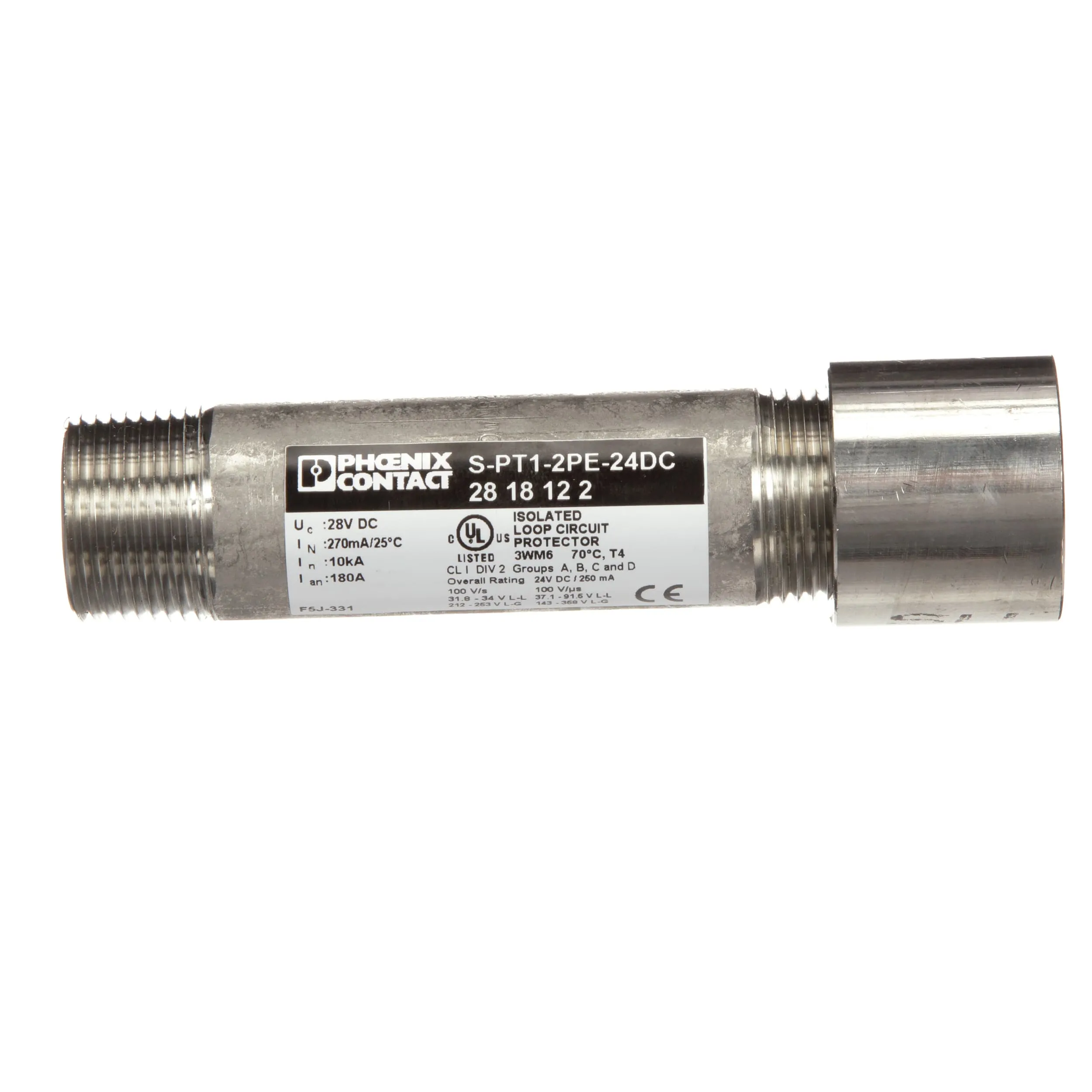

The S-PT1-2PE-24DC comes equipped in its own stainless steel pipe-stub enclosure to protect one analog loop (4-20 mA) by mounting directly to the conduit. The surge protector wires directly into the loop with minimal impedance and features an integrated grounding disc for ease-of-installation and maximum performance. Features:
